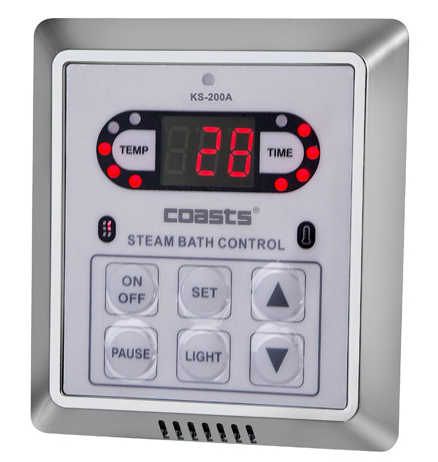

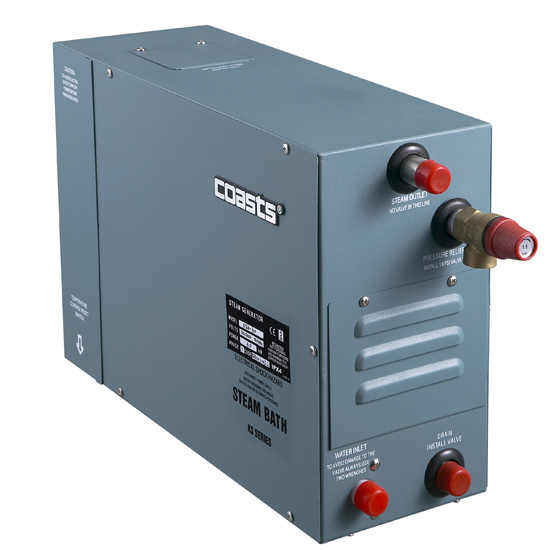

The Standard steam generator is the second generation of our products which covers all power sizes from 4KW to 24KW, 220-240V AC or 380-415V3N~. When equiped with KS-200A digital control panel, the temperature, working time and even steam room light could be controlled digitally. You could switch between temperature units, and also "Pause" the steam generator from heating when needed without shutting off the whole system. Optional reomote controller could also be selected to let you control the steam generator from distance.
The Standard steam generator features auto water supplementary system, over-pressure and over-heat protection, and In-generator auto drain system. The segment-heating and self-diagnose function make the heater energy-efficient and easy-operation.
Parameters:
Model | Power kw | Power supply (50/60Hz) | Power wire (Copper) N*mm2 | Dimensions cm | Packing dimensions cm | Gross weight kg | |
Voltage V | Current A | ||||||
KSA-30 | 3.0 | 220-240V~ | 13.6 | 3*2.5 | 42.5*16*31.5 | 54.5*21.5*42 | 10.5~11 |
KSA-40 | 4.0 | 220-240V~ | 18.2 | 3*2.5 | |||
KSA-45 | 4.5 | 220-240V~ | 20.5 | 3*2.5 | |||
380-415V3N~ | 6.8 | 5*1.5 | |||||
KSA-50 | 5.0 | 220-240V~ | 22.7 | 3*2.5 | |||
380-415V3N~ | 9.1 | 5*1.5 | |||||
KSA-60 | 6.0 | 220-240V~ | 27.3 | 3*4.0 | |||
380-415V3N~ | 9.1 | 5*1.5 | |||||
KSA-70 | 7.0 | 220-240V~ | 31.8 | 3*6.0 | 47.5*18.5*45 | 53.5*23*59 | 15.6~16.2 |
380-415V3N~ | 11.4 | 5*2.5 | |||||
KSA-80 | 8.0 | 220-240V~ | 36.4 | 3*6.0 | |||
380-415V3N~ | 13.6 | 5*2.5 | |||||
KSA-90 | 9.0 | 380-415V3N~ | 13.6 | 5*2.5 | 16.4~17 | ||
KSA-105 | 10.5 | 380-415V3N~ | 15.9 | 5*2.5 | |||
KSA-120 | 12.0 | 380-415V3N~ | 18.2 | 5*2.5 | |||
KSA-150 | 15.0 | 380-415V3N~ | 22.7 | 5*2.5 | 51*18.5*46 | 56.5*23*59 | 17.5~18.5 |
KSA-180 | 18.0 | 380-415V3N~ | 27.3 | 5*4.0 | |||
KSA-225 | 22.5 | 380-415V3N~ | 34.1 | 5*6.0 | |||
KSA-240 | 24.0 | 380-415V3N~ | 36.4 | 5*6.0 | |||
Notice: KSA steam generator are equiped with auto drain system. 9-12 KW units could be customized to 220-240V on request. | |||||||
